Ref: 9019697

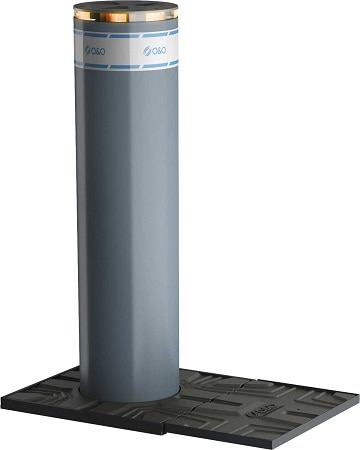

Automatic Bollard OAK 1200.12

K12 rated, this heavy duty product is developed for the protection and defense of sensitive and/or strategic sites such as prestigious buildings, hotels etc

Find out more

Comptatible technologies

Wired Technology (WT)
Find out more

Benefits

Independent hydraulic pump for each bollard: in case of pump failure, the other bollards keep working
Easy access to hydraulic pump for simplified servicing, with anti-tampering switch
Easy removal of bollard tube and hydraulic ram
Impact resistance: up to 2 100 000 J (estimated)
Standard rising time: ≤ 5.3 s @ 25 °C ambient temperature
Emergency rising time: ≤ 2.5 s (with additional device EFO, option)
Lowering time: 4.0 s typical, (factory adjusted, on-field adjustable)
Max operating frequency: up to 2 000 op./day
MCBF: 3 000 000 cycles
Sensors for bollard positions: fully up and fully retracted
Obstacle sensing, adjustable (with/without movement inversion)
Bollard top cover with LED ligths and buzzer
IP Grade: IP67
EFO device for “Emergency” rising time (option)
Bollard will stay up even in case of power loss. It is possible to lower the bollard by means of a mechanical key

Details & specifications

Description

Compatibilities

Technology

Wired Technology (WT)

Somfy Products

Bollards

Documents and links

Bollard Brochure Download
Bollard OAK 12 Datasheet Download
